SV Silver Queen

Irwin 52 Specifications

Name: Silver Queen - Irwin 52 Cutter-Rigged Ketch
Brand: Irwin Yachts
Price: 247500 AUD
Availability: InStock

Detailed dimensions, engine, systems, accommodation and recorded equipment for SV Silver Queen, a 52-foot ketch for sale in Brisbane.

Length15.85 m / 52 ft

RigCutter-rigged ketch

EnginePerkins 4.236 diesel

Accommodation4 cabins (1 storage)

LocationBrisbane, Queensland

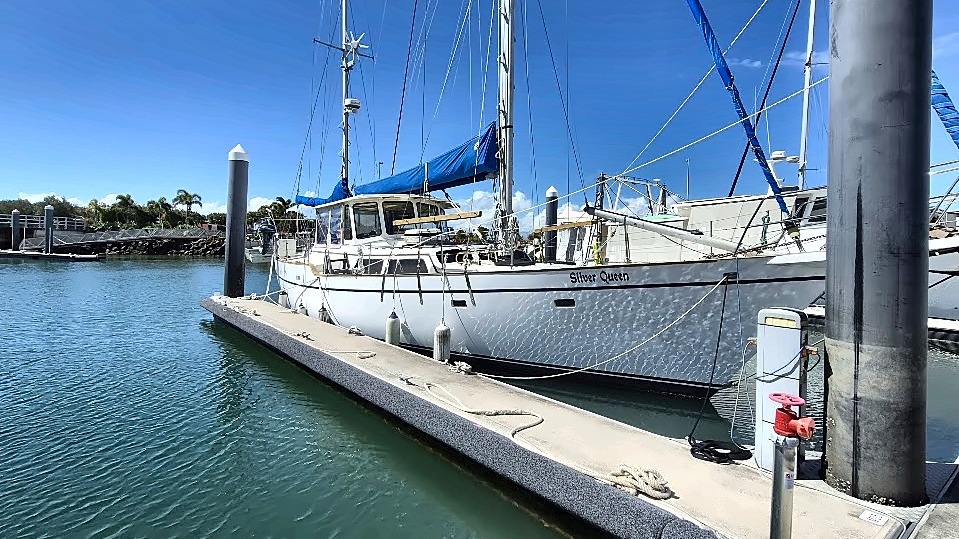

Vessel Overview

Silver Queen

Silver Queen is an Irwin 52 cutter-rigged ketch designed by Ted Irwin and built by Irwin Yachts in the United States. Her four-cabin layout includes three dedicated sleeping areas and a fourth cabin currently configured as a substantial storage room, together with a large saloon, liveaboard galley and two bathrooms.

Vessel	Silver Queen
Model	Irwin 52
Designer / Builder	Ted Irwin / Irwin Yachts, USA
Rig	Cutter-rigged ketch
Construction	Fibreglass/GRP hull and deck
Accommodation	4 cabins (3 sleeping + 1 storage)
Location	Royal Queensland Yacht Squadron, Manly, Brisbane, Australia
Price	AUD $247,500

Recorded Specifications

Detailed by System

Explore Silver Queen’s major systems, equipment and liveaboard features in one place — from her substantial 52-foot GRP hull and rebuilt Perkins propulsion through to tankage, navigation, rig, power generation and the onboard comforts designed for extended cruising.

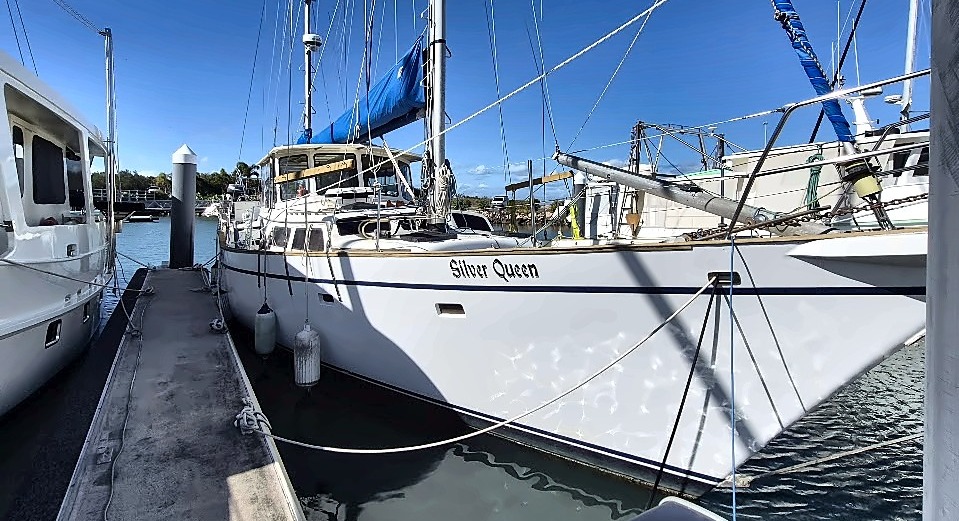

Dimensions & Construction

Length: 15.85 m / 52 ft
Beam: 4.67 m / 15 ft 6 in
Draft: 1.8 m / 5 ft 10 in
Builder / Designer: Irwin Yachts, USA / Ted Irwin
Construction: Fibreglass/GRP hull and deck
Keel / Rudder: Integral three-quarter-length keel; large rudder on a small skeg

Engine & Propulsion

Engine: Perkins 4.236 four-cylinder diesel
Power: Approximately 84 hp
Engine Hours: Less than 650 hours
Engine / Gearbox Rebuild: Perkins 4.236 engine and BorgWarner gearbox fully rebuilt in 2020
Transmission: BorgWarner Velvet Drive 71C, 2.57:1
Drive / Propeller: 1 1/4-inch stainless shaft; three-blade bronze/fixed propeller
Bow Thruster: Vetus electric bow thruster; BOW12512D recorded

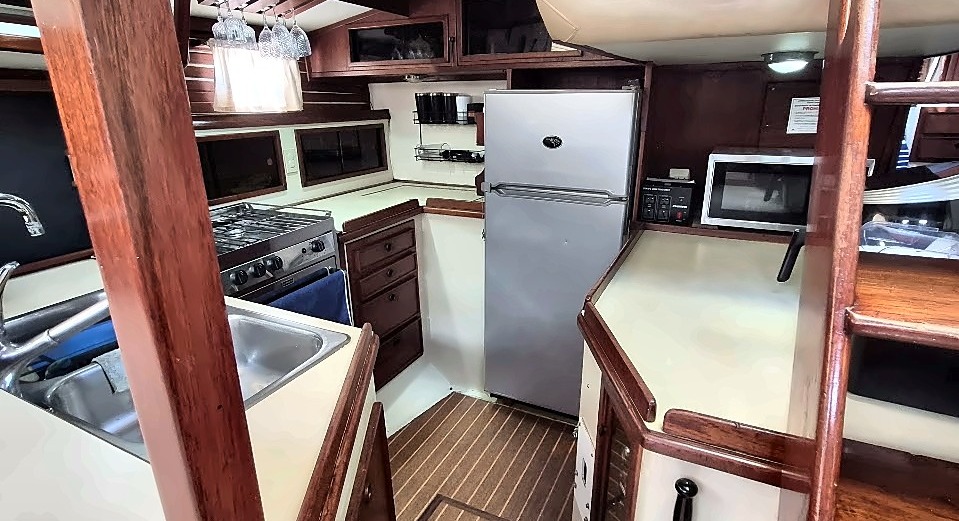

Tankage & Domestic Systems

Fuel: Approximately 700 L total across two tanks
Fresh Water: Approximately 700 L total across two tanks
Holding Tank: Plastic holding tank beneath the aft-cabin floor
Hot Water: Kuuma approximately 45 L electric hot-water system
Galley: Twin stainless sinks, Force 10 three-burner gas stove/oven and microwave
Refrigeration: Eva Kool/Evacool upright two-door 12 V fridge/freezer

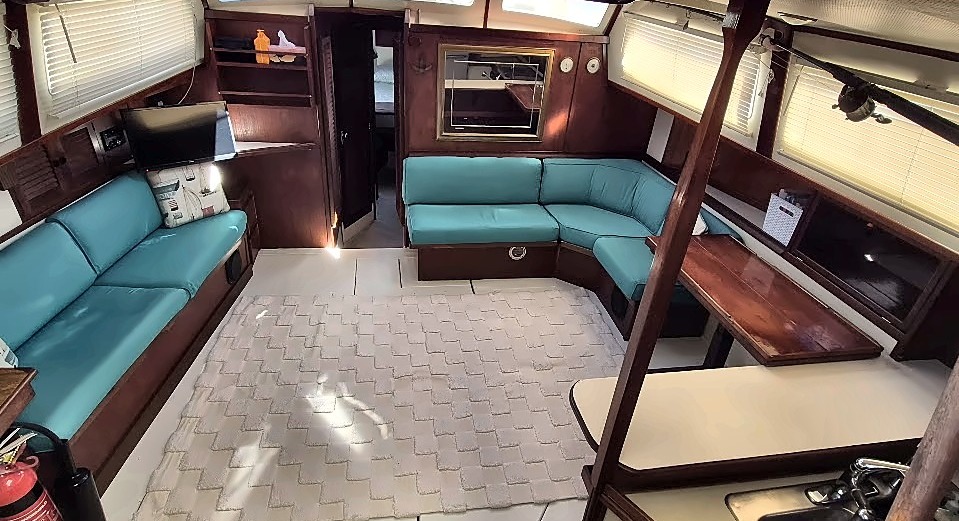

Accommodation

Cabins: Four cabins: three sleeping areas and one dedicated storage room
Berths: Six berths recorded
Bathrooms: Two bathrooms with two TMC electric heads and two showers
Aft Ensuite: Ensuite to the master stateroom includes head, shower and bathtub
Main Saloon: Large living area with saloon seating, chart area and adjoining galley
Forward Accommodation: V-berth double plus separate twin-bunk cabin

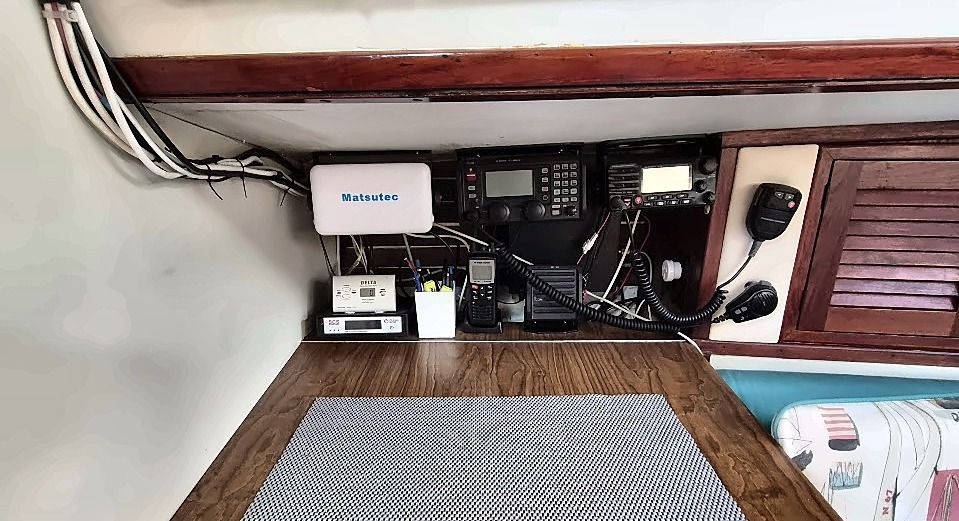

Electrical & Generation

Electrical Systems: 12 V / 120 V / 240 V systems
House Bank: Six 220 Ah AGM house batteries; 1,320 Ah nominal capacity
Start Batteries: Two engine-start batteries
Bow-Thruster Batteries: Two dedicated bow-thruster batteries
Solar: Three current solar panels with Victron solar control
Wind Generation: Rutland 913 wind generator
Inverter / Charger: Magnum ME2512 inverter/charger

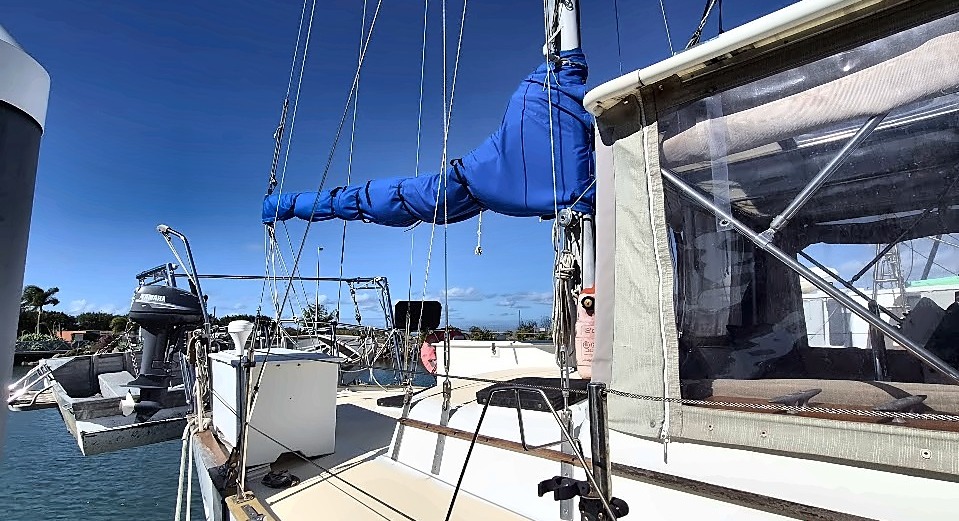

Rig & Sails

Rig Type: Cutter-rigged ketch
Masts / Booms: Aluminium main and mizzen masts with two aluminium booms
Mast Stepping: Main mast keel stepped; mizzen mast deck stepped
Standing Rigging: Standing rigging replaced in December 2024
Furlers: Profurl C430 forestay furler plus inner-stay Profurl
Sail Plan: Furling genoa, furling staysail, mainsail and mizzen

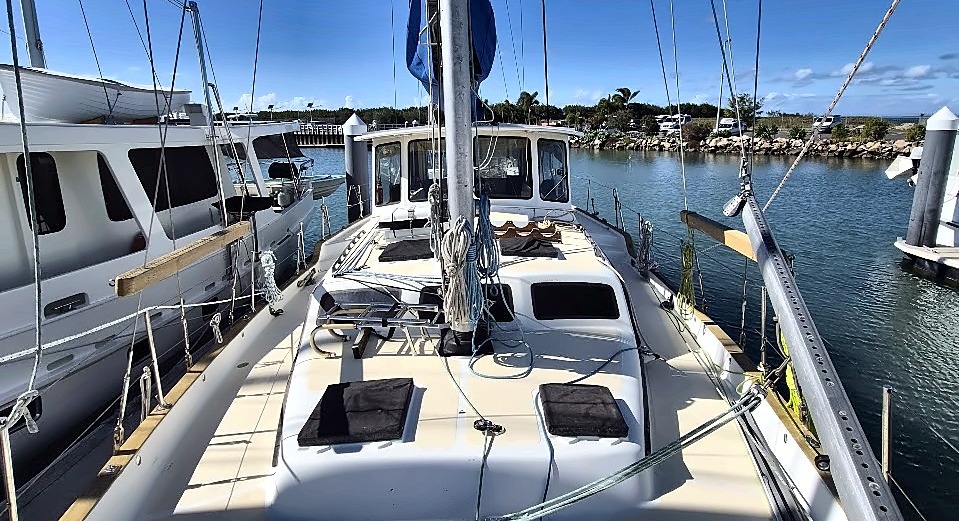

Deck, Anchoring & Tender

Primary Anchor: Manson Supreme recorded by the 2025 survey
Primary Chain: Approximately 90 m of 10 mm short-link chain
Windlass: Vetus 1000 W electric anchor windlass recorded
Cockpit Enclosure: Stainless frame, hard roof, roll-down clears and shade screens
Tender: 3.1 m aluminium tender with Captain Collars recorded
Outboard: Yamaha 15 hp outboard recorded

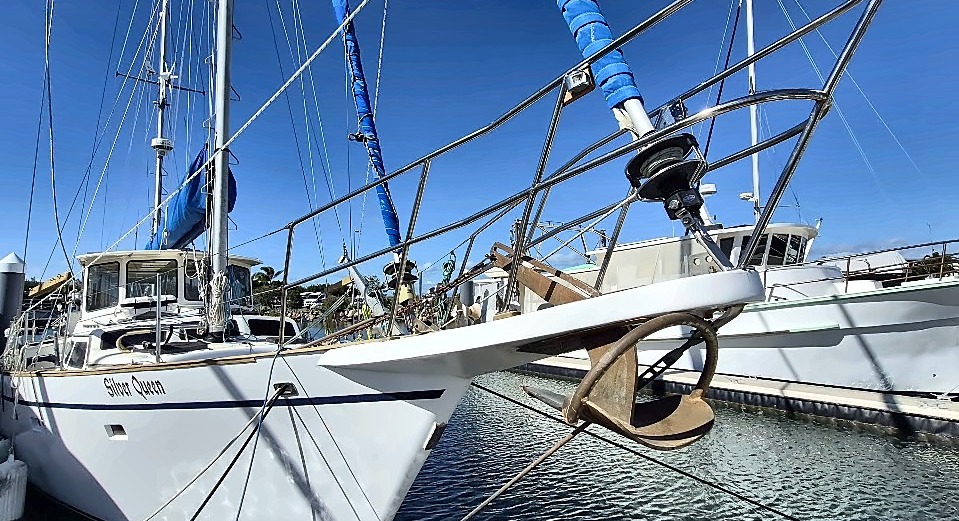

Survey & Safety

Survey: Out-of-water insurance survey and sea trial completed 5 August 2025
Survey Finding: Described as well constructed and structurally sound for coastal/offshore cruising, subject to stated maintenance
EPIRB: EPIRB sighted in 2025 with December 2031 expiry recorded
Sea Trial: 4.6 knots at 1,600 rpm and 6.8 knots at 2,600 rpm recorded
Documentation: Survey and supporting records available to genuine prospective buyers
Buyer Due Diligence: Independent inspection and survey remain recommended for any purchaser

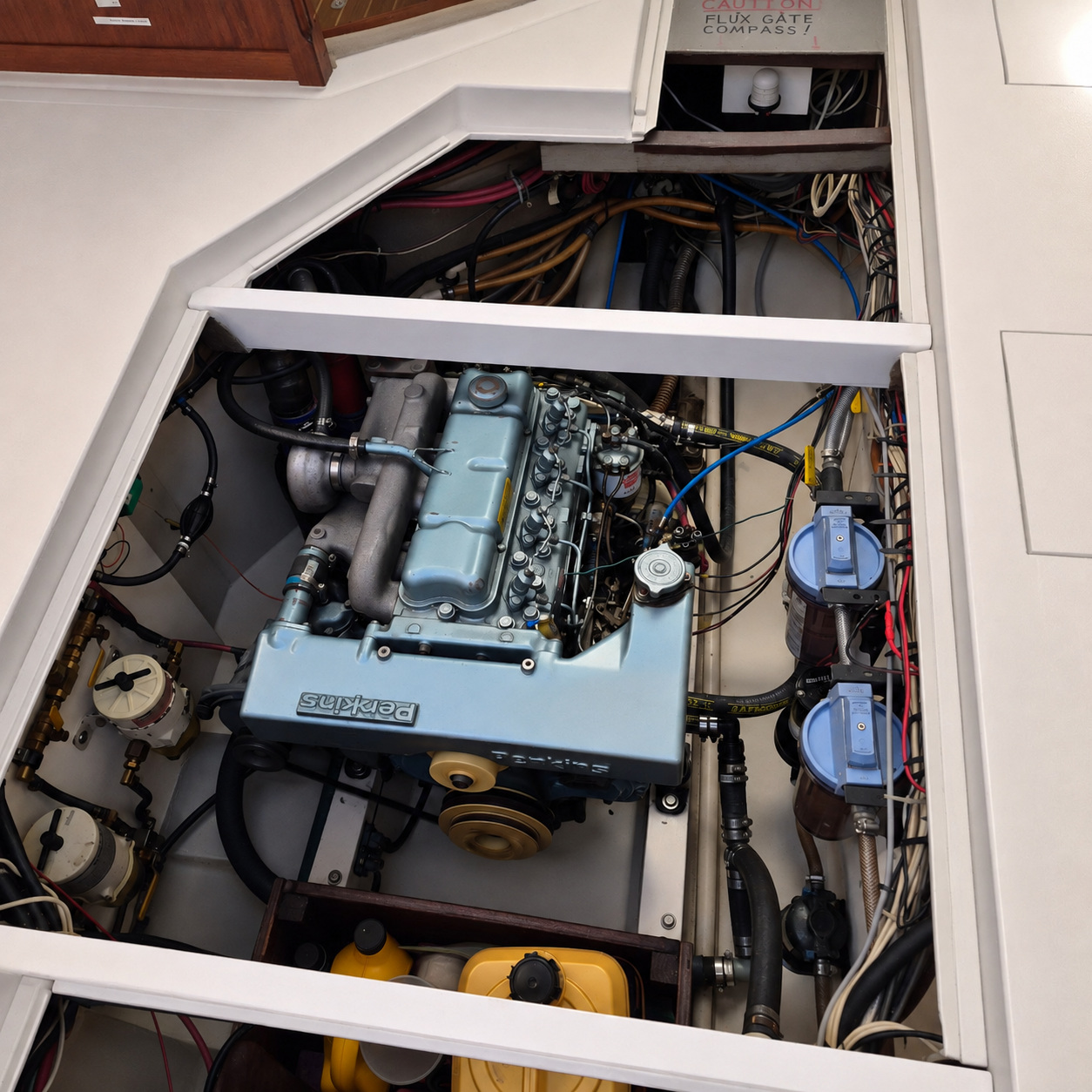

Perkins 4.236 diesel engine aboard Silver Queen — Perkins 4.236 Engine

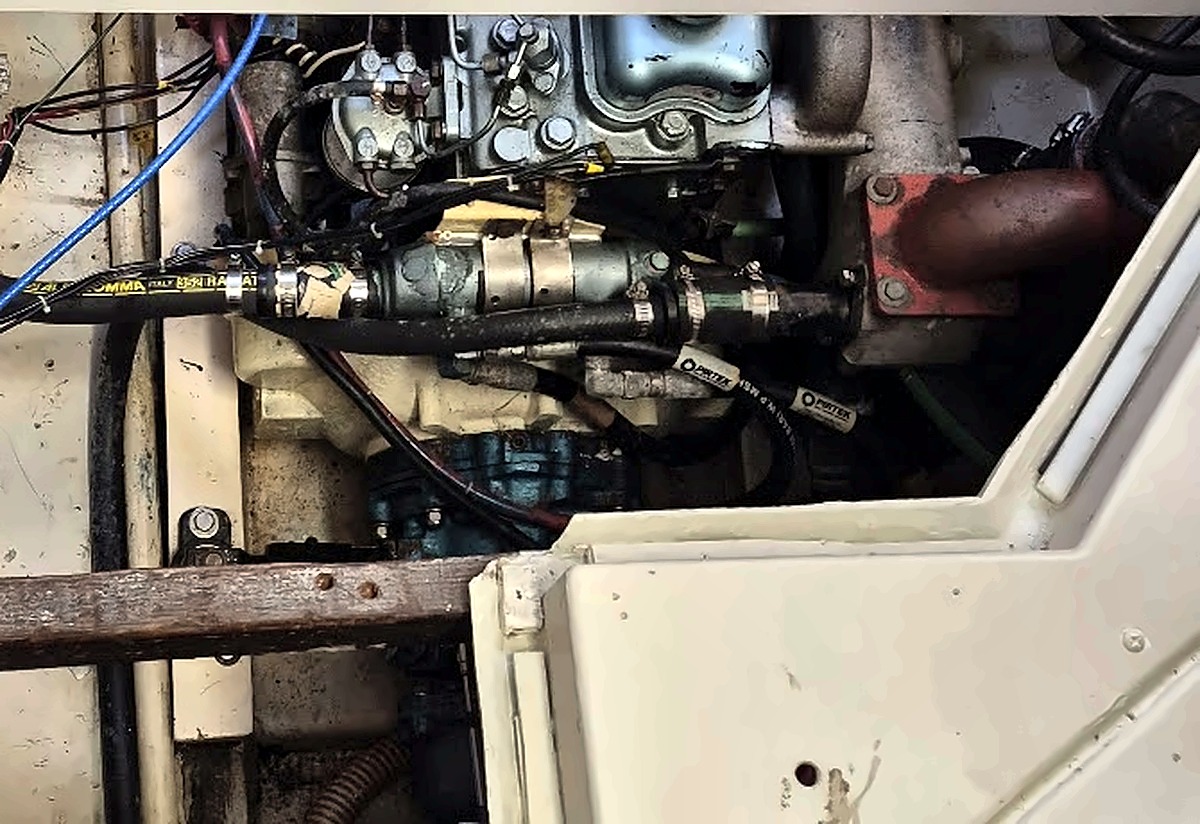

BorgWarner gearbox and transmission area aboard Silver Queen — BorgWarner Gearbox / Transmission

Engine, Gearbox and Mechanical Details

Documented 2020 Engine and Gearbox Rebuild

Silver Queen’s Perkins 4.236 four-cylinder diesel underwent a major documented rebuild in 2020, including machining, new liners, pistons, rings and bearings, crankshaft work and cylinder-head testing. The BorgWarner Velvet Drive 71C gearbox is also recorded as having been fully rebuilt in 2020.

Less than 650 engine hours are currently recorded following the rebuild. Power is transferred through a 1 1/4-inch stainless-steel shaft to a three-blade bronze fixed propeller, while the Vetus BOW12512D electric bow thruster assists with close-quarters handling and was confirmed operational during the 2025 survey.

The 2025 sea trial recorded 4.6 knots at 1,600 rpm and 6.8 knots at 2,600 rpm, supporting a practical and well-documented propulsion package for extended coastal and bluewater cruising.

Perkins 4.236 four-cylinder diesel, approximately 84 hp.
Less than 650 hours recorded.
BorgWarner Velvet Drive 71C gearbox, 2.57:1 ratio, fully rebuilt in 2020.
1 1/4-inch stainless shaft with three-blade bronze/fixed propeller.
Vetus BOW12512D electric bow thruster, confirmed operational during the 2025 survey.
2025 sea trial recorded 4.6 knots at 1,600 rpm and 6.8 knots at 2,600 rpm.

Accommodation Layout

Four Cabins — Three Sleeping Areas and One Storage Room

Silver Queen is configured for long-term liveaboard and bluewater cruising, with the space and separation needed to make extended time aboard comfortable. Three dedicated sleeping areas, two bathrooms and a fourth cabin currently used as substantial storage provide flexibility for family, guests, equipment and the cruising lifestyle — whether the plan is extended coastal cruising, bluewater passages or living aboard.

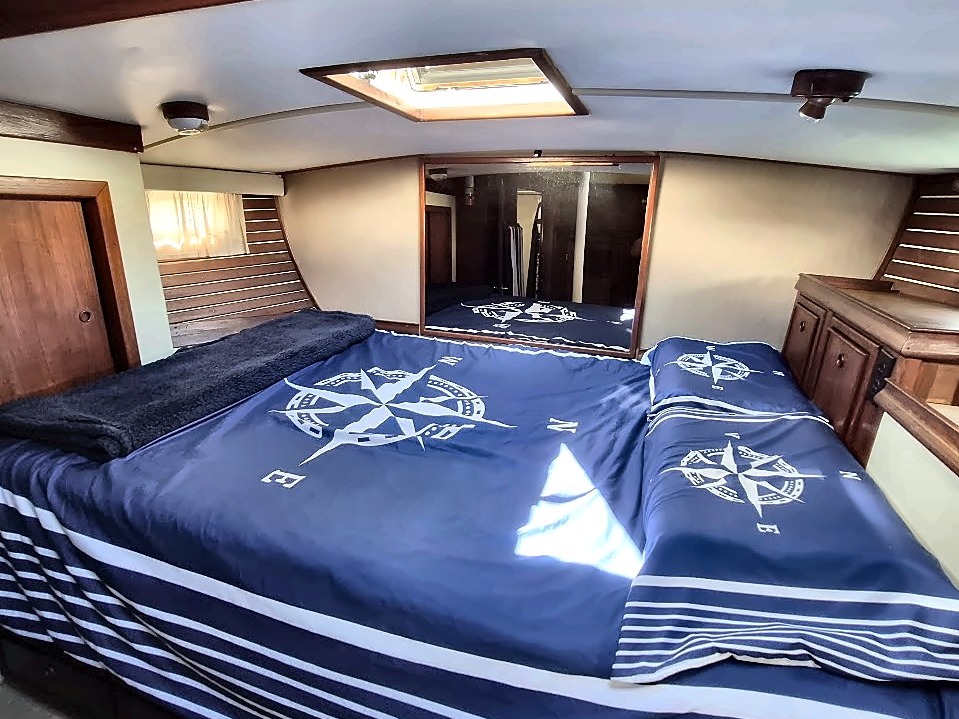

Master Stateroom (Aft)

Large queen bed with generous hanging space, drawers, wardrobe and additional storage, plus an ensuite bathroom with electric head, shower and bathtub.

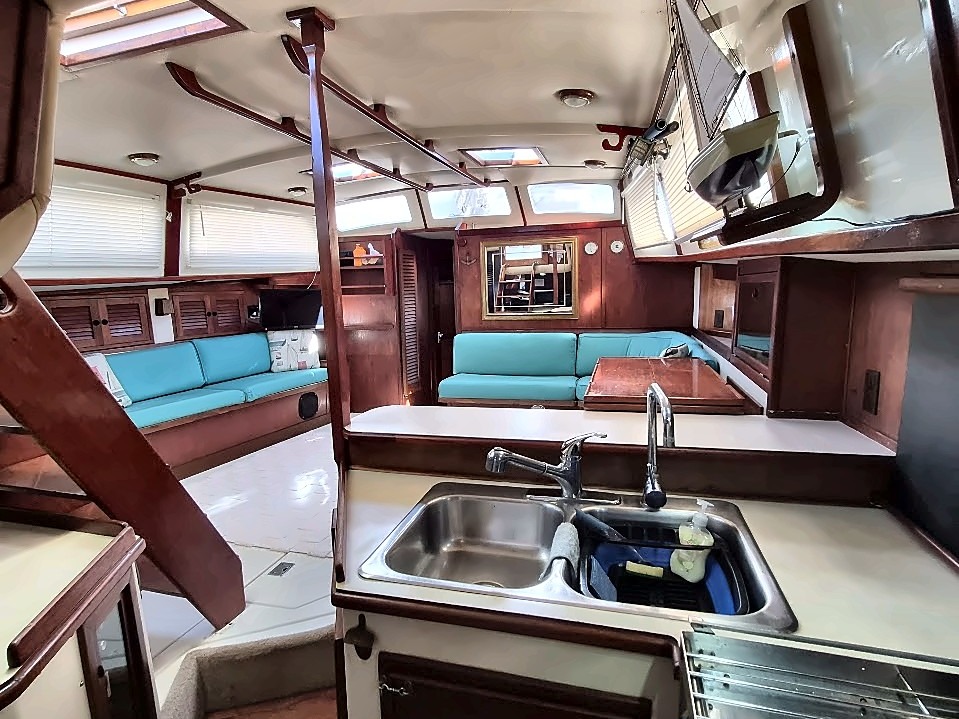

Silver Queen main saloon and galley area

Main Saloon and Kitchen

Very large living area with comfortable saloon seating, dedicated navigation station and chart area, adjoining a fully functional long-term liveaboard galley with twin sinks, Force 10 three-burner stove/oven, microwave and full-size fridge/freezer.

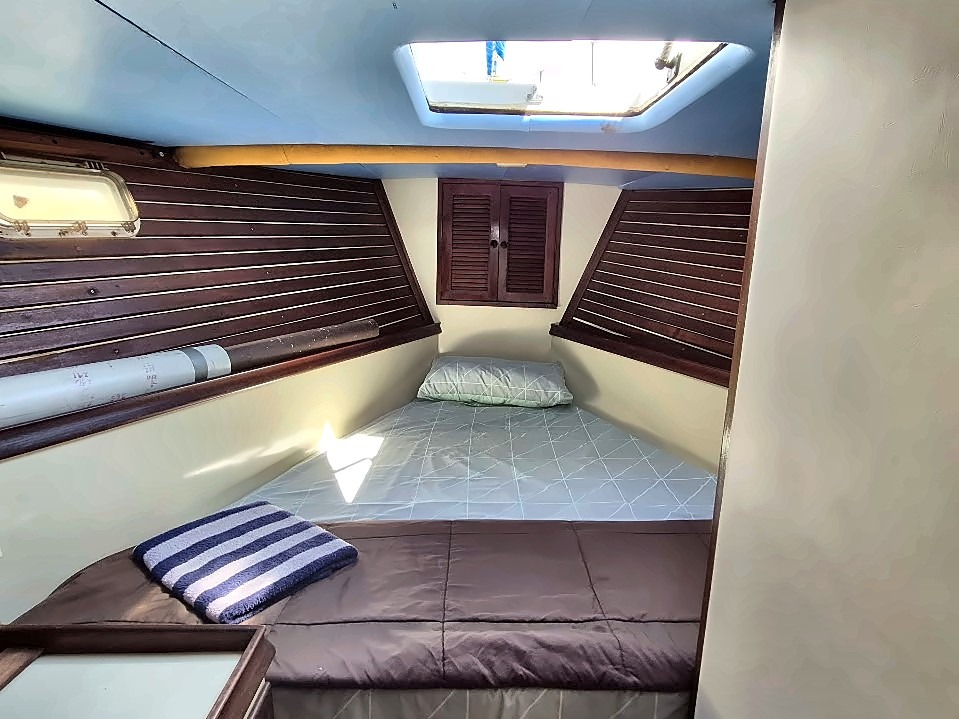

Forward Cabin and Bathroom

Large V-berth double with useful storage and access to the second bathroom, which includes an electric head, basin and shower.

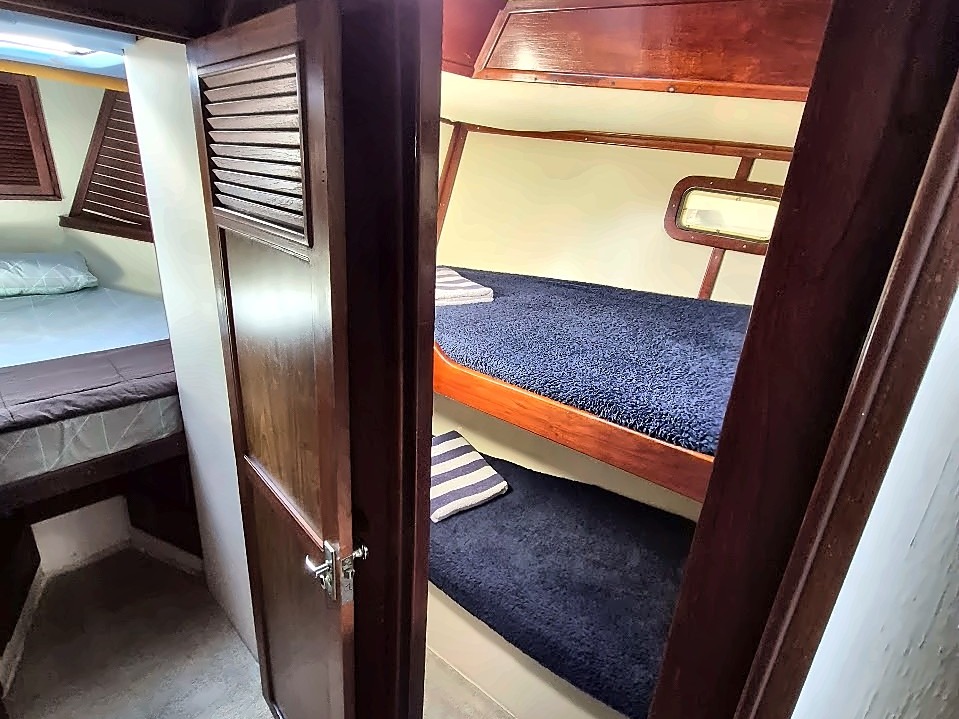

Bunk Room and Storage

The forward twin-bunk cabin provides two additional berths, while the fourth aft cabin is currently configured as a dedicated standing storage room, with flexibility to return it to accommodation in the future.

Next Step

Review the Full Pack, Then Arrange an Inspection

Explore the complete specifications and supporting information, then arrange a private viewing at Royal Queensland Yacht Squadron to experience Silver Queen’s scale, liveaboard comfort, cruising systems and bluewater potential in person.
